Your Engineering Drawings.
Reviewed by AI.
In Minutes, Not Hours.

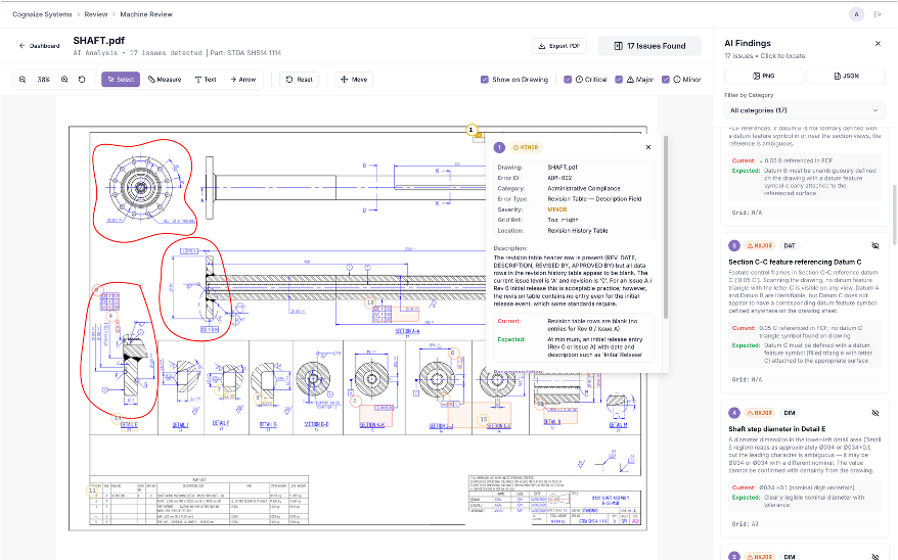

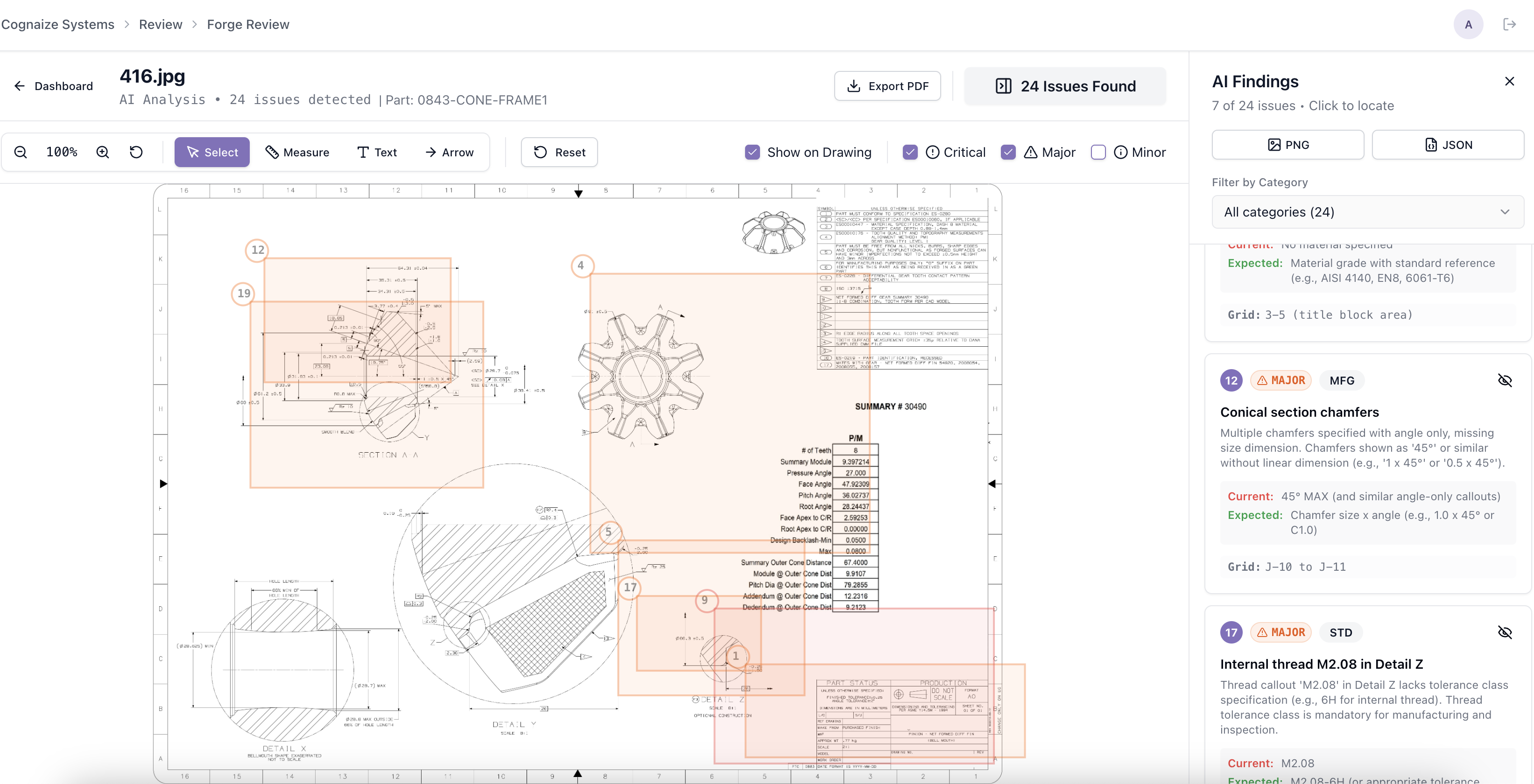

Upload an engineering drawing and get instant AI-powered analysis. Detects critical errors, missing specs, and tolerance issues across 13+ categories.

• Flags missing surface finish callouts and tolerance stack-ups — e.g., bore diameter tolerances on a piston skirt
• Validates GD&T against drawing standards (ISO/ASME) — e.g., perpendicularity callouts on a crankshaft journal
• Checks material specs and heat treatment callouts — e.g., case hardening depth on a camshaft
• Analyzes tolerance stack-ups across mating parts in an assembly — e.g., clearance validation between bearing housing and shaft in a differential assembly

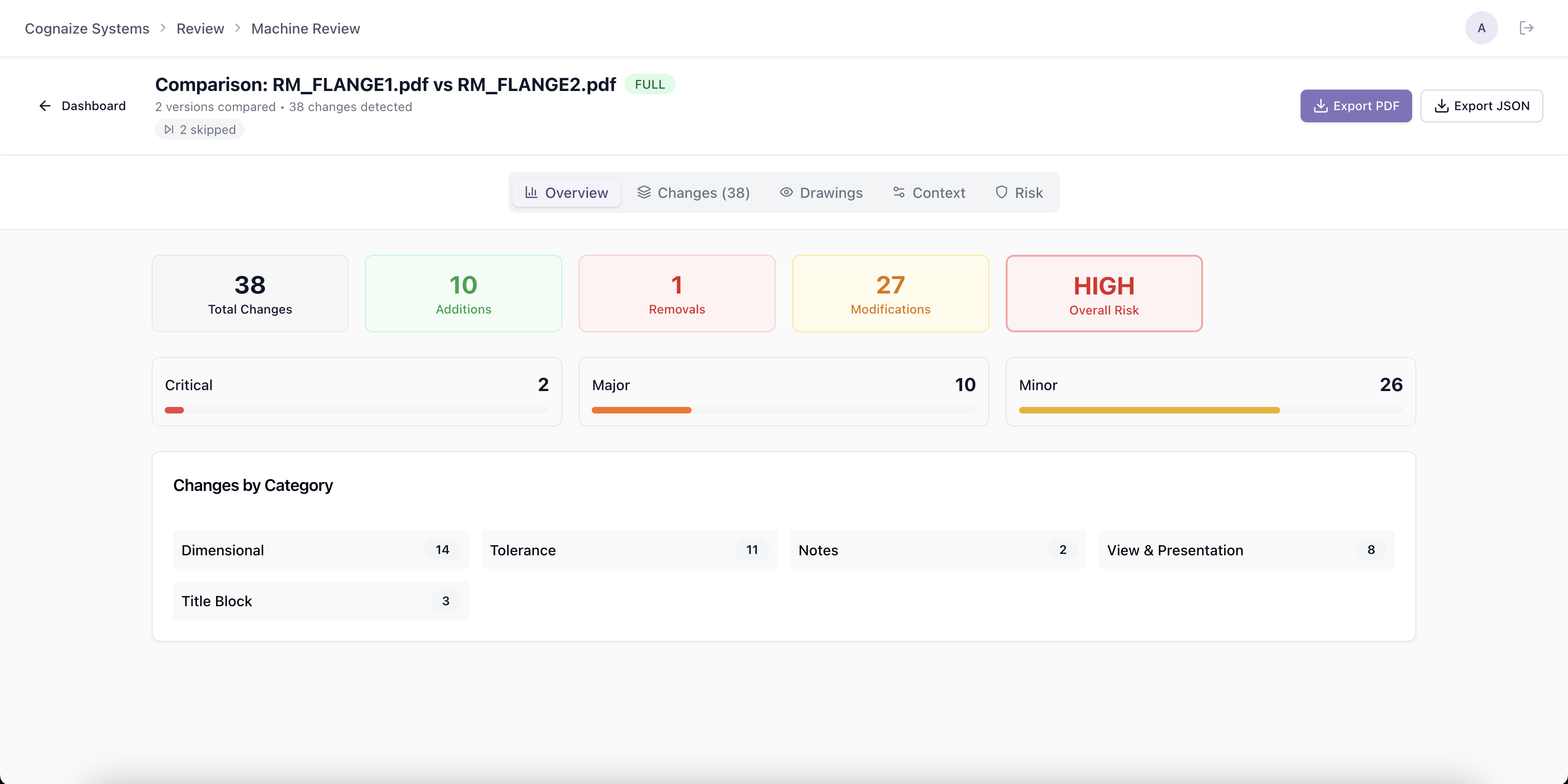

• Generates structured findings report by severity — critical, major, and minor across all checks

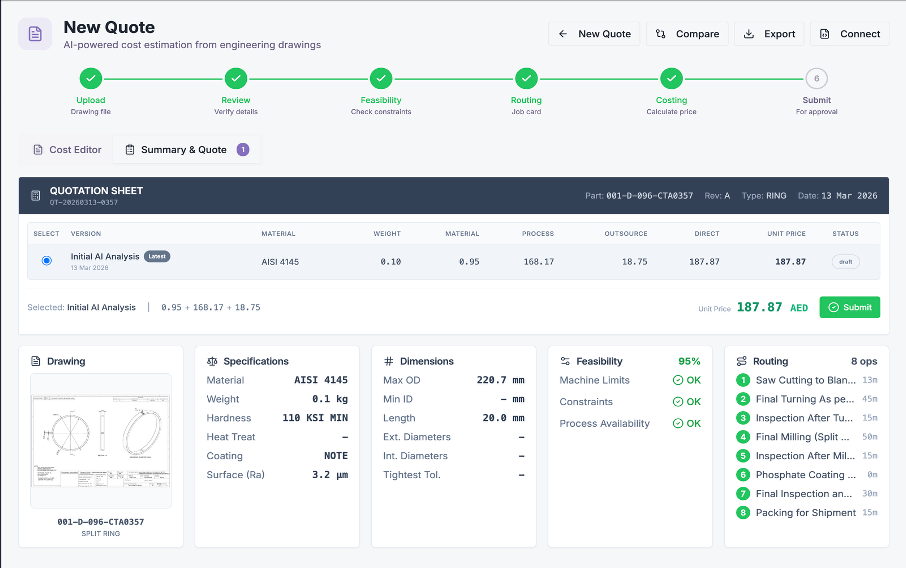

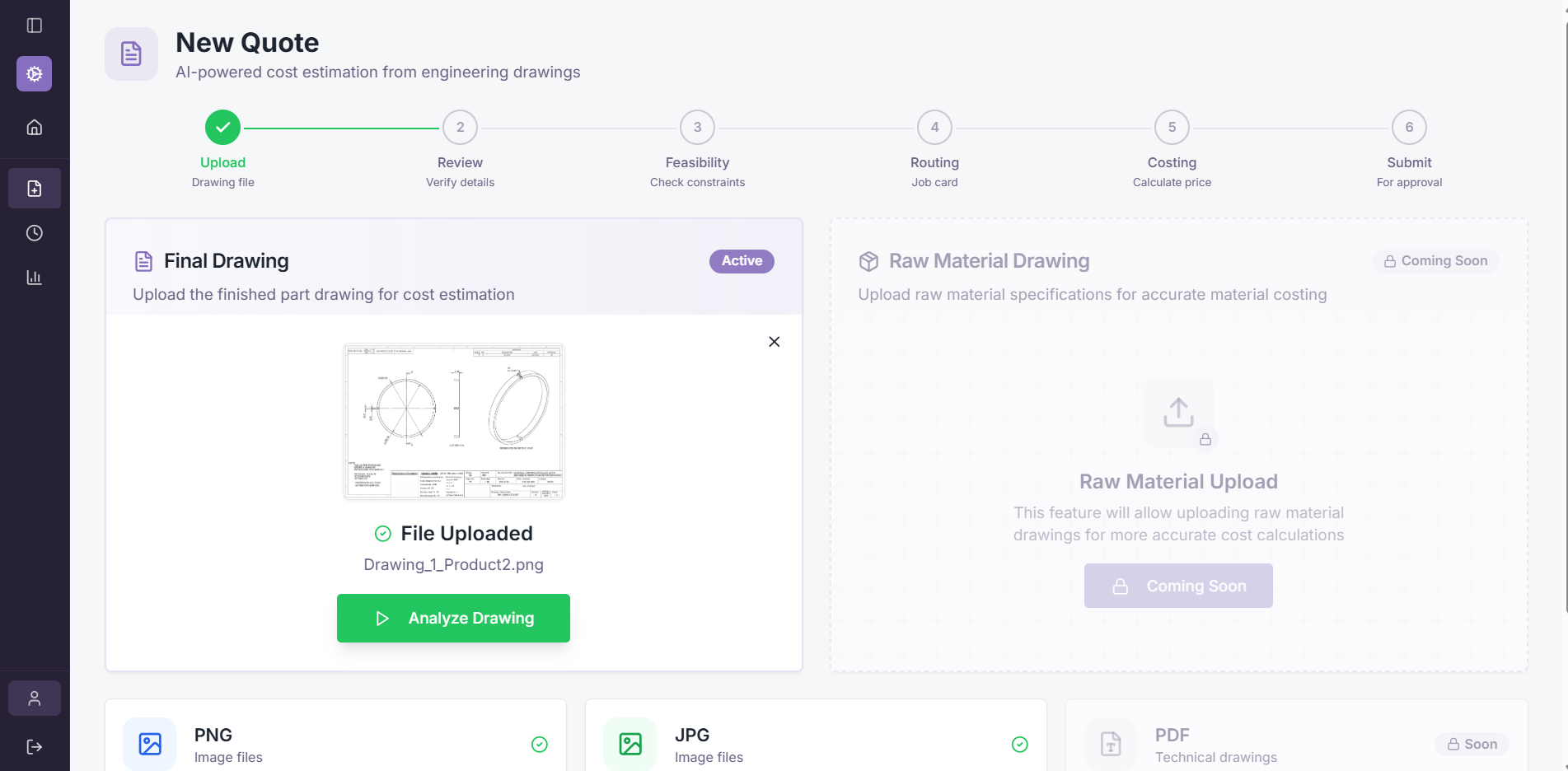

From drawing to quote in minutes. AI extracts specs, checks feasibility, generates job cards, and produces detailed cost breakdowns automatically.

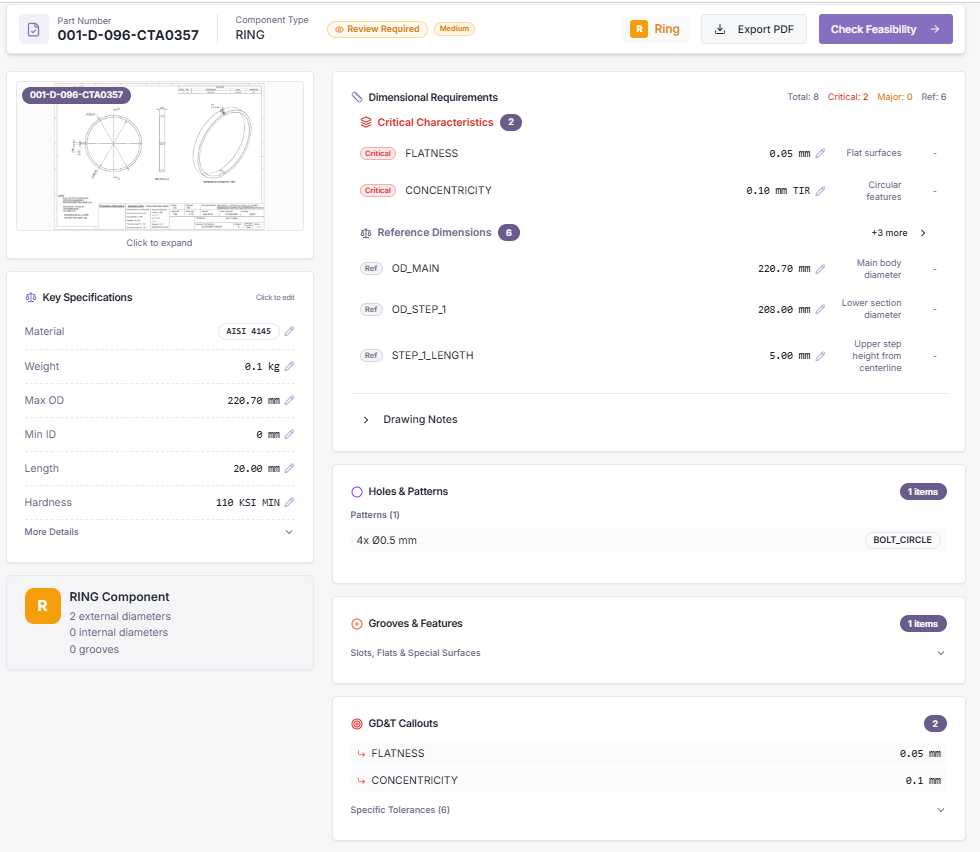

• Extracts dimensions, tolerances, and process requirements automatically — e.g., wall thickness and draft angles on a cast housing

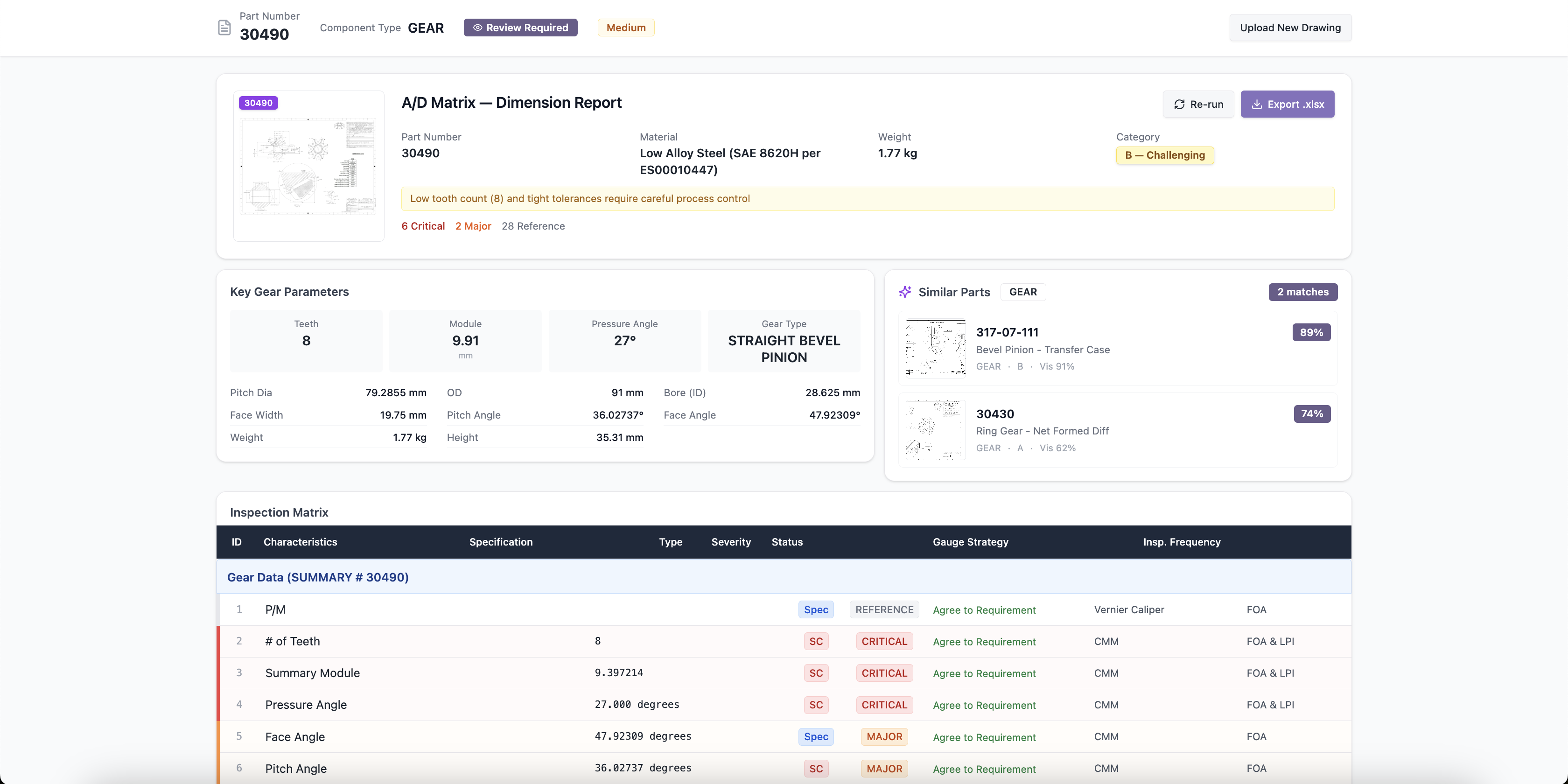

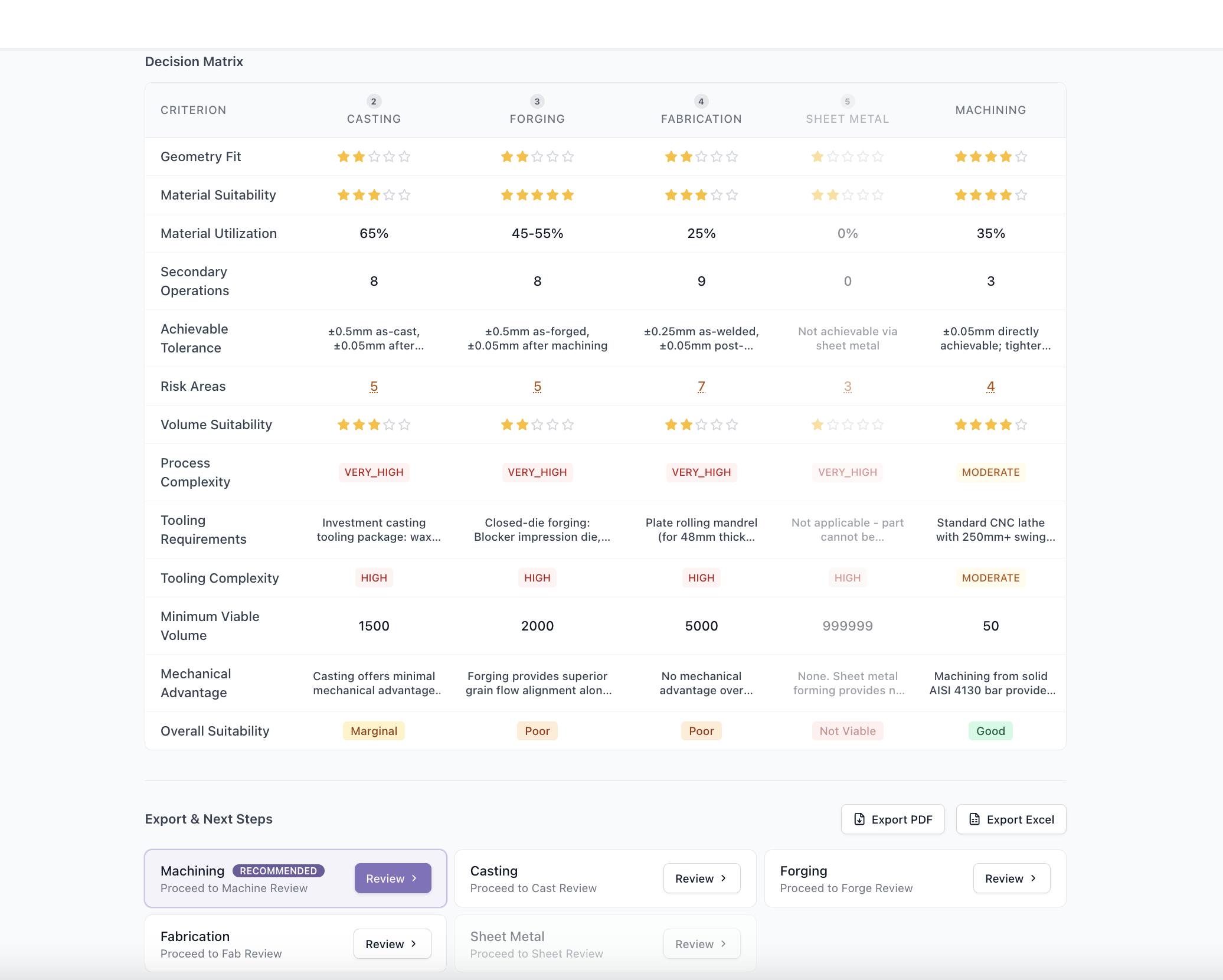

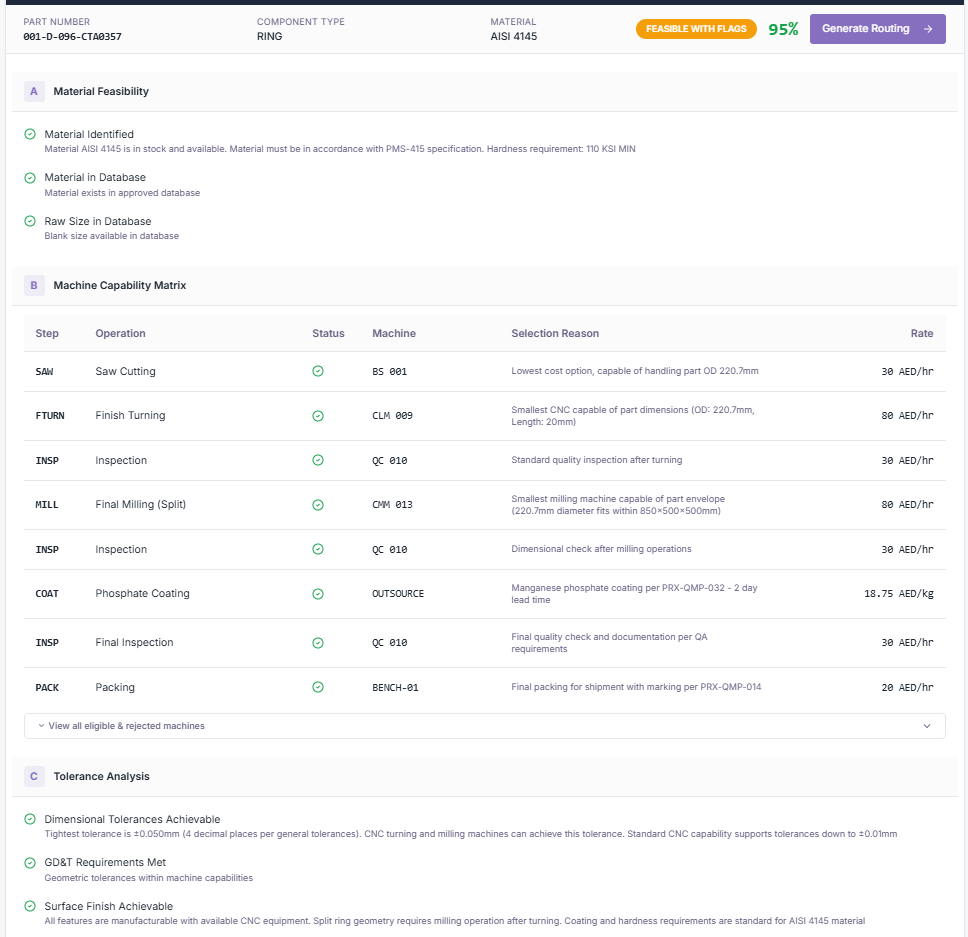

• Checks casting/forging/machining/fabrication feasibility against process limits — e.g., undercut detection on a forged connecting rod, or bend radius and weld joint specs on a fabricated exhaust manifold

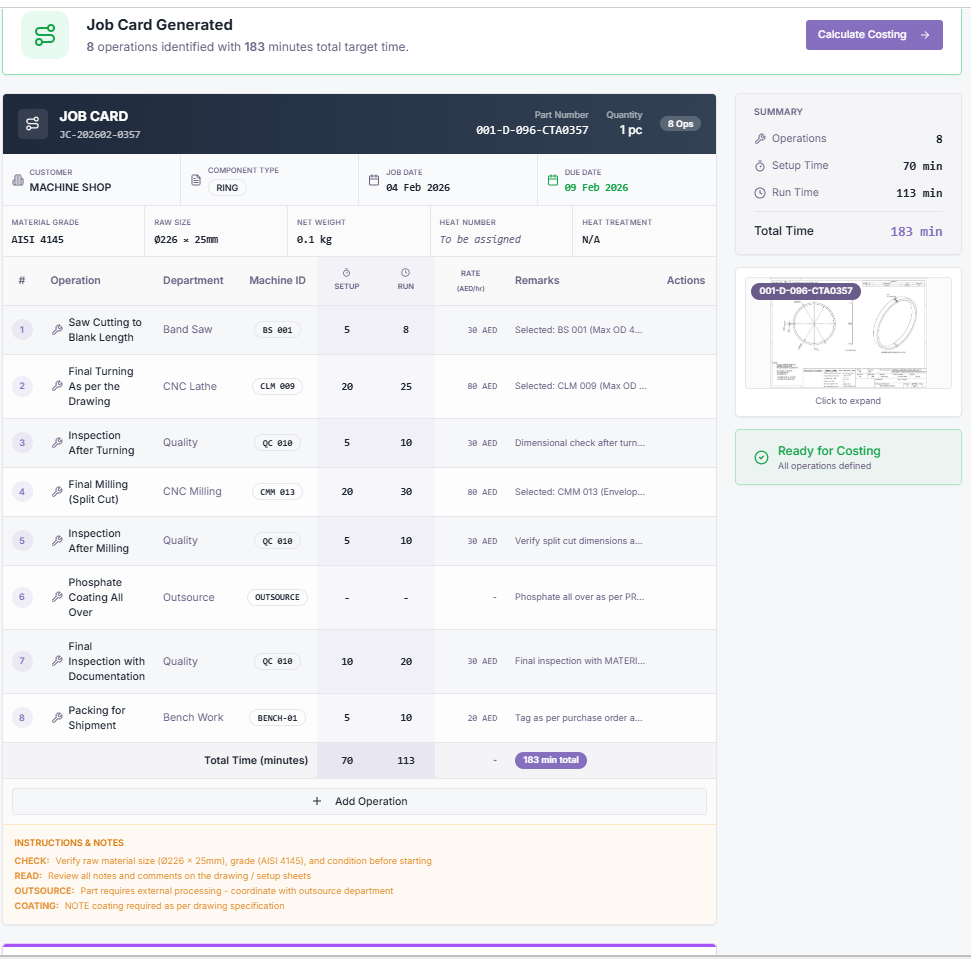

• Generates job cards and routing sheets per operation — e.g., turning, milling, and grinding sequences for a brake caliper assembly

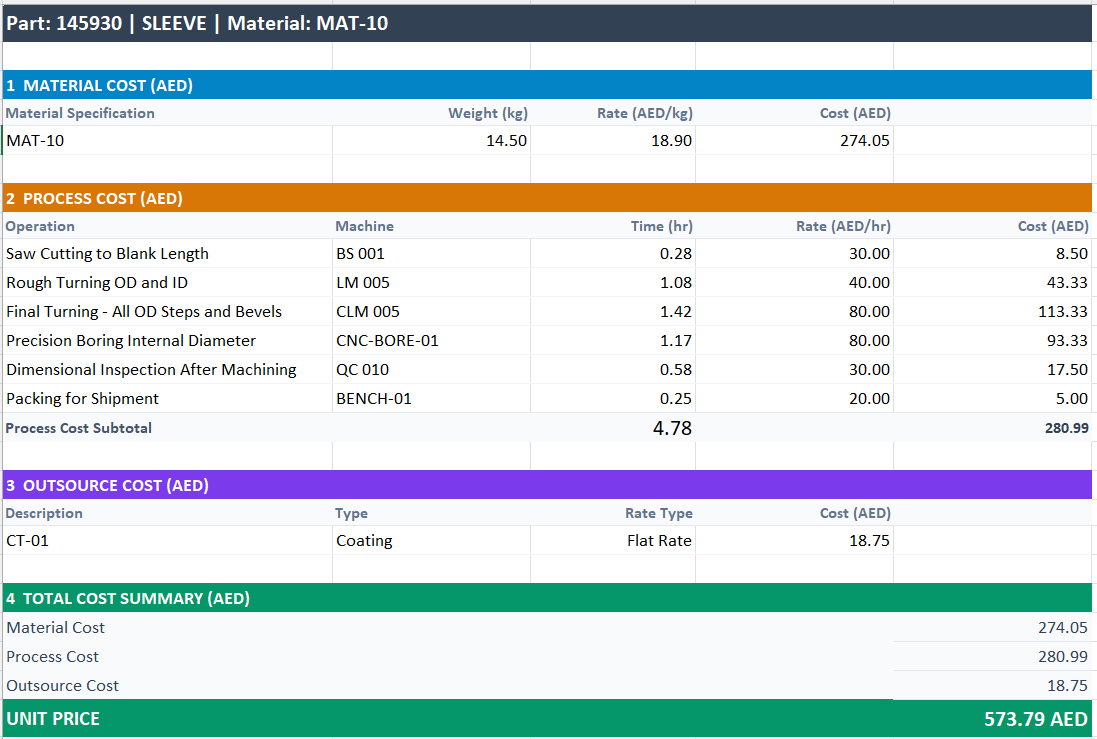

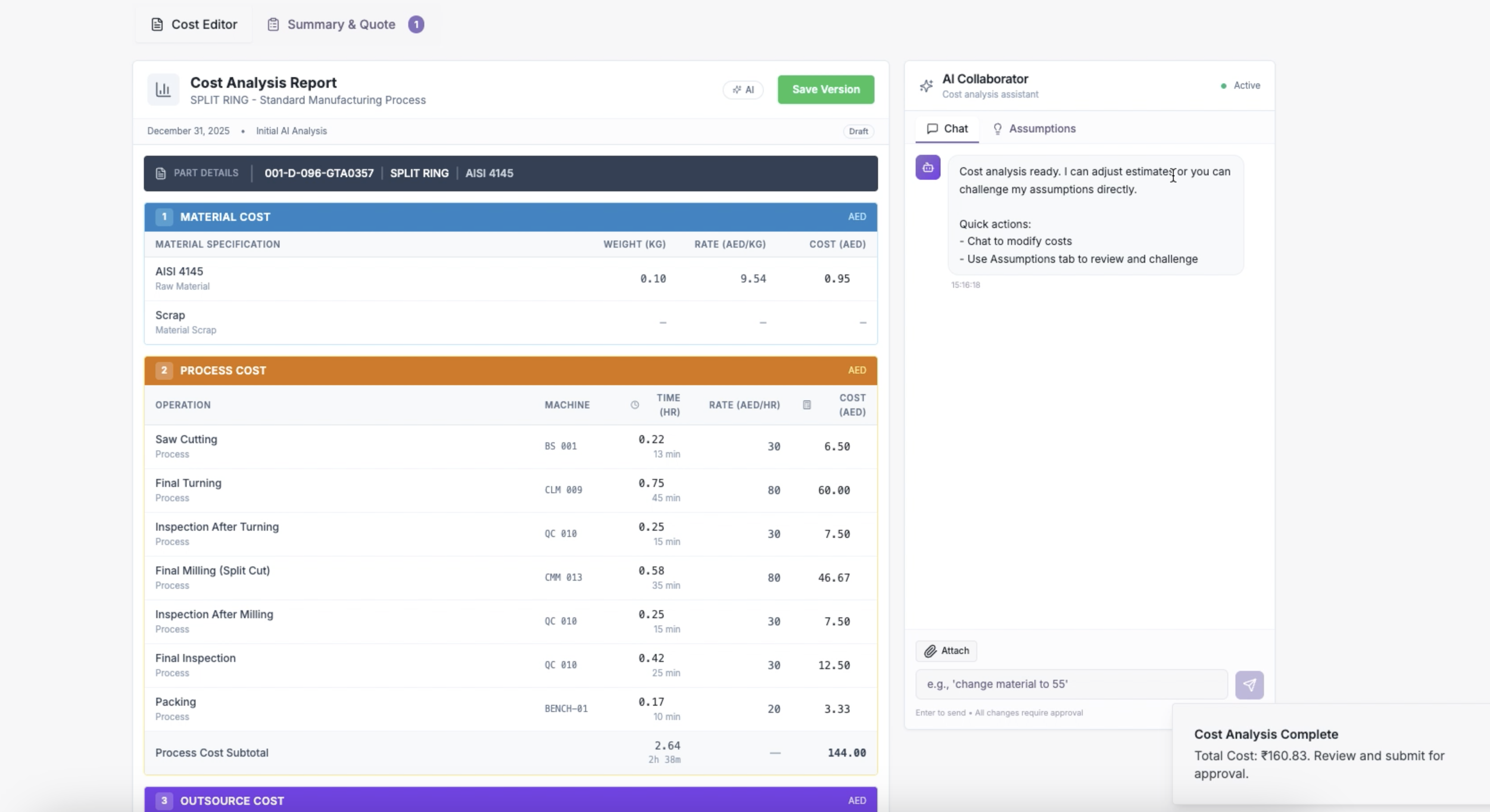

• Produces itemized cost breakdown by material, process, and overhead — e.g., per-piece cost for a machined brake caliper
• Flags manufacturability risks before production — e.g., thin wall sections in a cast suspension knuckle that risk porosity or shrinkage defects
